Address accessed by instruction will not show.


Post new topic   Reply to topic    Cheat Engine Forum Index -> Cheat Engine
View previous topic :: View next topic
Author Message
phckr
How do I cheat?
Reputation: 0

Joined: 21 Jan 2020
Posts: 2

PostPosted: Tue Jan 04, 2022 2:15 pm    Post subject: Address accessed by instruction will not show. Reply with quote

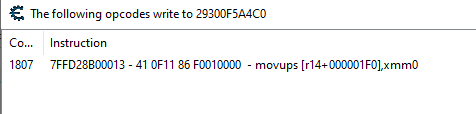

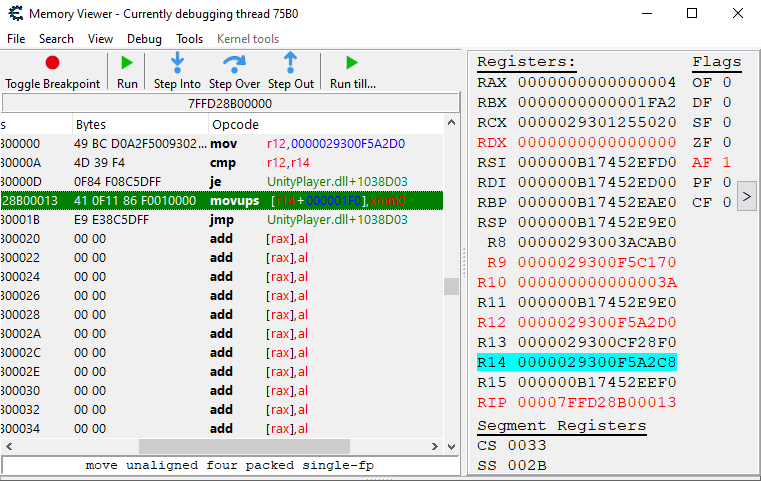

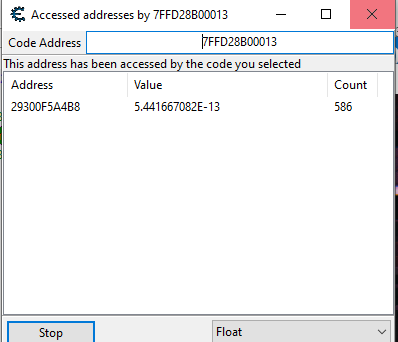

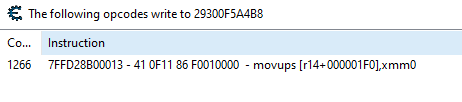

Using "find out what writes to this address", I find the same instruction writes to two separate addresses, the X coordinate and the Y coordinate. Using "find out which addresses this instruction accesses", it shows X, but not Y. The instruction enables movement on the X and Y axis, and executes constantly. To further test this I made a code injection comparing the contents of r14, the instruction's register, to the address of Y. Again, they never match.

My aim is to disable movement on the Y axis only.



 Description:
 Filesize:  45.52 KB
 Viewed:  1069 Time(s)




 Description:
 Filesize:  10.77 KB
 Viewed:  1069 Time(s)




 Description:
 Filesize:  4.21 KB
 Viewed:  1069 Time(s)




 Description:
 Filesize:  4.23 KB
 Viewed:  1069 Time(s)



Back to top
View user's profile Send private message
ParkourPenguin
I post too much
Reputation: 152

Joined: 06 Jul 2014
Posts: 4697

PostPosted: Tue Jan 04, 2022 3:00 pm    Post subject: Reply with quote

movups means "move unaligned packed singles". Basically, it moves all 4 floats in xmm0 into the specified address at the same time.


You can effectively disable movement on the y-coordinate at that injection point by copying the relevant value in memory into the register before writing the register to memory.
I'm assuming the y-coordinate is the second element in the vector register.

If you have SSE4.1, this is easy with insertps:
Code:
insertps  xmm0,[r14+1F4],10
movups  [r14+1F0],xmm0

If you don't, it gets more complicated:
Code:
movss   xmm2, [r14+1F4]
movaps  xmm1, xmm0
unpcklps  xmm1, xmm0
movss   xmm1, xmm2
shufps  xmm1, xmm0, E1
movups  [r14+1F0], xmm1
(make sure xmm1 and xmm2 are free, use different xmm registers that are free, or back them up before using them)
_________________
I don't know where I'm going, but I'll figure it out when I get there.
Back to top
View user's profile Send private message
phckr
How do I cheat?
Reputation: 0

Joined: 21 Jan 2020
Posts: 2

PostPosted: Tue Jan 04, 2022 8:26 pm    Post subject: Reply with quote

xmm0 contained two doubles, so insertps didn't work properly.
Why then is movups being used with two doubles?
this got it to work:
Code:

movsd [r14+000001F0],xmm0
Back to top
View user's profile Send private message
ParkourPenguin
I post too much
Reputation: 152

Joined: 06 Jul 2014
Posts: 4697

PostPosted: Tue Jan 04, 2022 9:32 pm    Post subject: Reply with quote

The only logical reason I can think of is that movups was introduced in SSE while movupd was introduced in SSE2. Maybe the compiler was targeting SSE only.
Might also just be a weird compiler oddity.

I'm glad you got it to work.
