Change value movups xmm0,[rbx] into AA script


Post new topic   Reply to topic    Cheat Engine Forum Index -> General Gamehacking
View previous topic :: View next topic
Author Message
RVL63
How do I cheat?
Reputation: 0

Joined: 29 Mar 2025
Posts: 3

PostPosted: Sat Mar 29, 2025 8:40 am    Post subject: Change value movups xmm0,[rbx] into AA script Reply with quote

Hello, I am relatively new to scripting...

Trying to change the value with CTRL-E works perfect and sticks during a session.

Nothing writes to the address.

Opcodes accessing the address is only
7FF60C87E420 - 0F10 03 - movups xmm0,[rbx]

Trying to auto assemble a script whereby I can change the value with hotkeys.

Been reading tutorials and in the forum but can not find the solution.

Any help would be appreciated.


Extra Info:

7FF60C87E415 - 48 8D 9F 98020000 - lea rbx,[rdi+00000298]
7FF60C87E41C - 0F1F 40 00 - nop dword ptr [rax+00]
7FF60C87E420 - 0F10 03 - movups xmm0,[rbx] <<
7FF60C87E423 - 0F29 44 24 30 - movaps [rsp+30],xmm0
7FF60C87E428 - 0F10 4B 10 - movups xmm1,[rbx+10]

RAX=0000018A0B0CEB68
RBX=0000018A009AF978
RCX=00000000FFFFFFFF
RDX=0000000000003189
RSI=000000559700ED60
RDI=0000018A009AF6E0
RBP=0000018A009AFDB0
RSP=000000559700EC70
R8=0000000000000122
R9=00007FF60D0FB650
R10=00007FF60D0FB160
R11=000000559700ED20
R12=0000000000000000
R13=001BDD2B899406F6
R14=000000559700F9D8
R15=0000018B9CF5DC90
RIP=00007FF60C87E423
Back to top
View user's profile Send private message
ParkourPenguin
I post too much
Reputation: 150

Joined: 06 Jul 2014
Posts: 4661

PostPosted: Sat Mar 29, 2025 11:10 am    Post subject: Reply with quote

`movups` = "move unaligned packed singles". In this case, the word "packed" means it's moving four floats at once. Of those four, which one is the float you want to modify?

Give the address you're watching and the value of rbx

_________________
I don't know where I'm going, but I'll figure it out when I get there.
Back to top
View user's profile Send private message
RVL63
How do I cheat?
Reputation: 0

Joined: 29 Mar 2025
Posts: 3

PostPosted: Sat Mar 29, 2025 11:33 am    Post subject: Reply with quote

Hello ParkourPenguin,

Thanks for the reply.

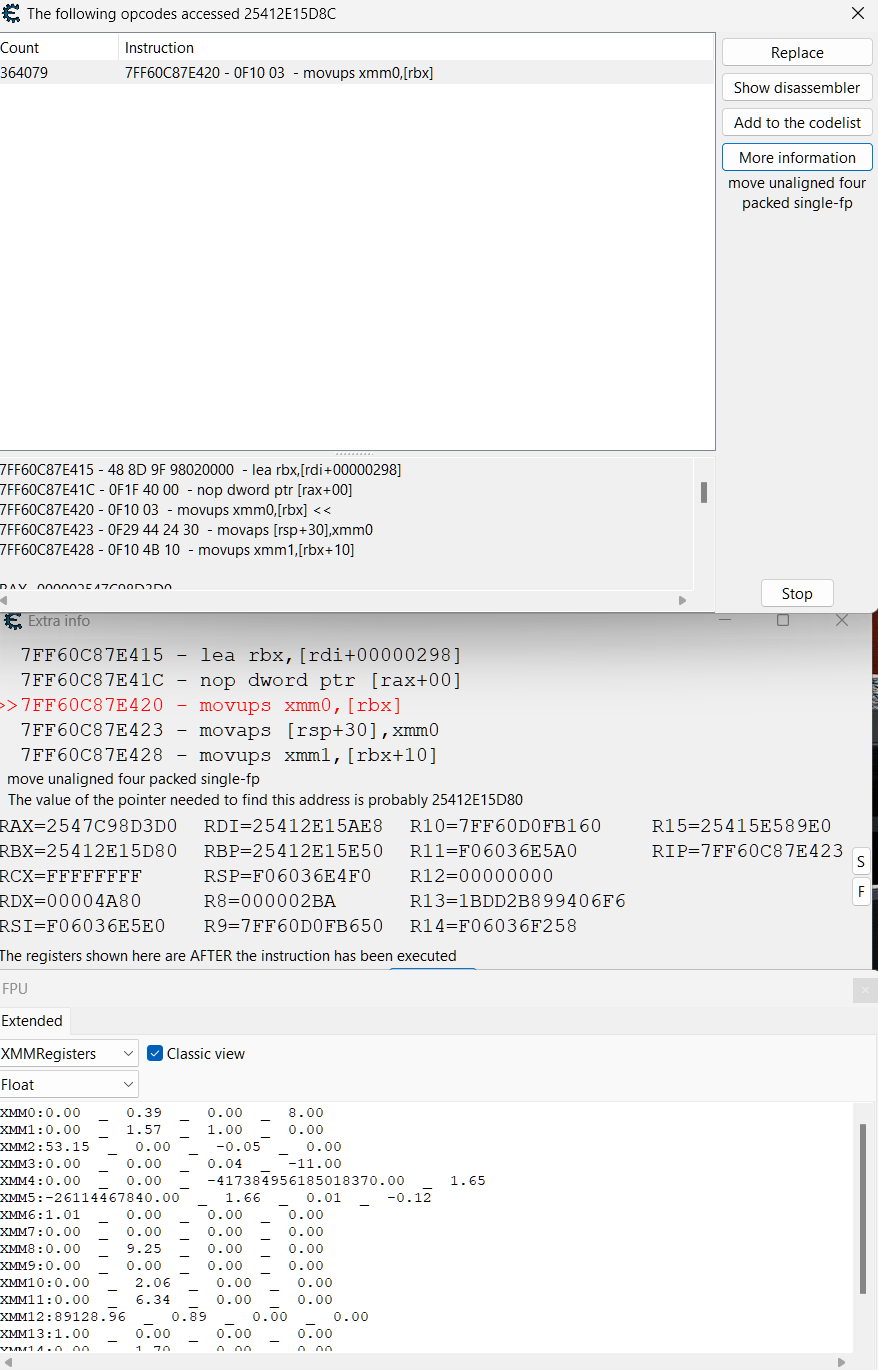

25412E15D8C
XMM0:0.00 _ 0.39 _ 0.00 _ 8.00

Modify the fourth (8.00)



 Description:
 Filesize:  93.14 KB
 Viewed:  7372 Time(s)



Back to top
View user's profile Send private message
ParkourPenguin
I post too much
Reputation: 150

Joined: 06 Jul 2014
Posts: 4661

PostPosted: Sat Mar 29, 2025 11:51 am    Post subject: Reply with quote

Code:
aobscan(MyInjectionPoint,...)
alloc(newmem,2048,MyInjectionPoint)
alloc(newValue,4)
label(return)

newmem:
  movss xmm0,[newValue]
  movss [rbx+C],xmm0
  movups xmm0,[rbx]
  movaps [rsp+30],xmm0
  jmp return

newValue:
  dd (float)2

MyInjectionPoint:
  jmp newmem
  nop 3
return:

registersymbol(MyInjectionPoint)
registersymbol(newValue)

...
Don't forget dealloc / unregistersymbol in the disable section
_________________
I don't know where I'm going, but I'll figure it out when I get there.
Back to top
View user's profile Send private message
RVL63
How do I cheat?
Reputation: 0

Joined: 29 Mar 2025
Posts: 3

PostPosted: Sat Mar 29, 2025 12:01 pm    Post subject: Reply with quote

Hello ParkourPenguin,

Thanks for the information.

Will try this later this evening and let you know the result.

New with dealloc / unregistersymbol in disbale section but will hopefully figure it out.

Thanks again.
Back to top
View user's profile Send private message
ParkourPenguin
I post too much
Reputation: 150

Joined: 06 Jul 2014
Posts: 4661

PostPosted: Sat Mar 29, 2025 12:20 pm    Post subject: Reply with quote

Click "Show disassembler", Tools -> Auto Assemble, Template -> AOB Injection
Put `dealloc(newValue)` / `unregistersymbol(newValue)` with the other dealloc / unregistersymbol under [DISABLE]
