Trying creating a WebView. CE faild to load libraries.


Post new topic   Reply to topic    Cheat Engine Forum Index -> Cheat Engine Lua Scripting
View previous topic :: View next topic
Author Message
Corroder
Grandmaster Cheater Supreme
Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

PostPosted: Sat Apr 25, 2020 9:58 am    Post subject: Trying creating a WebView. CE faild to load libraries. Reply with quote

I am trying to make Web Page Viewer adapted to CE Lua scripting environments.
I made ones using Lua 5.3.5 scripting and using WebView.dll + Cjson.dll from Lua JLS 5.3.5 as framework libraries. It's work fine when execute using Lua 5.3.5

Code:
-- test.lua (webview script Lua 5.3.5 example)

local webviewLib = require('webview')

-- Default web content
local url = [[data:text/html,<!DOCTYPE HTML PUBLIC "-//W3C//DTD HTML 4.01 Transitional//EN">

<html dir="ltr">
<head>
<meta http-equiv="Content-Type" content="text/html; charset=iso-8859-1">
<meta http-equiv="Content-Style-Type" content="text/css">
<link rel="top" href="./index.php?sid=ab3b4da2ec9bef9773a781137cad6616" title="Cheat Engine Forum Index" />

--- some HTML code until...

</html>
]]


local requestFunctionMap = {
  fullscreen = function(value, _, _, _, webview)
   webviewLib.fullscreen(webview, value == 'true')
  end,

  title = function(value, _, _, _, webview)
    webviewLib.title(webview, value)
  end,

  terminate = function(_, _, _, _, webview)
    webviewLib.terminate(webview, true)
  end,

  evalLua = function(value, evalJs, callJs, context, webview)
    local f, err = load('local evalJs, callJs, context, webview = ...; '..value)
    if f then
      return f(evalJs, callJs, context, webview)
    else
      print('Error', err, 'while loading', value)
    end
  end,

  evalJs = function(value, _, _, _, webview)
    webviewLib.eval(webview, value, true)
  end,
}

-- Parse command line arguments
local urlArg = arg[1]
if urlArg and urlArg ~= '' then
  if urlArg == '-h' or urlArg == '/?' or urlArg == '--help' then
    print('Launchs a WebView using the specified URL')
    print('Optional arguments: url title width height resizable')
    os.exit(0)
  end
  local protocol = string.match(urlArg, '^([^:]+):.+$')
  if protocol == 'http' or protocol == 'https' or protocol == 'file' or protocol == 'data' then
    url = urlArg
  elseif string.match(urlArg, '^.:\\.+$') or string.match(urlArg, '^/.+$') then
    url = 'file://'..tostring(urlArg)
  else
    print('Invalid URL, to launch a file please use an absolute path')
    os.exit(22)
  end
end
local title = arg[2] or 'Web View'
local width = arg[3] or 800
local height = arg[4] or 600
local resizable = arg[5] ~= 'false'
local verbose = arg[6] == 'true'

-- Creates the web view
local webview = webviewLib.new(url, title, width, height, resizable)

-- Defines a context that will be shared across Lua calls
local context = {}

-- Setup a Lua function to evaluates JS code
local function evalJs(value)
  webviewLib.eval(webview, value, true)
end

-- Setup a Lua function to call JS function,
-- the Lua function arguments are JSON encoded then passed to the JS function
local callJs, jsonLibLoaded, jsonLib
jsonLibLoaded, jsonLib = pcall(require, 'cjson')
if not jsonLibLoaded then
  jsonLibLoaded, jsonLib = pcall(require, 'dkjson')
end
if not jsonLibLoaded then
  print('Fail to find suitable JSON Lua module')
  jsonLib = nil
end
if jsonLib then
  callJs = function(functionName, ...)
    local args = {...}
    local jsArgs = {}
    for _, arg in ipairs(args) do
      table.insert(jsArgs, jsonLib.encode(arg))
    end
    local jsString = functionName..'('..table.concat(jsArgs, ',')..')'
    webviewLib.eval(webview, jsString, true)
  end
end

-- Registers the web view callback that handles the JS requests coming from window.external.invoke()
webviewLib.callback(webview, function(request)
  local flag, name, value = string.match(request, '^([%+%-%*]?)([^:]+):(.*)$')
  if name then
    if flag == '' then
      -- Look for the specified request
      local fn = requestFunctionMap[name]
      if fn then
        if verbose then
          print('Calling '..name..' with', value)
        end
        local s, r = pcall(fn, value, evalJs, callJs, context, webview, jsonLib)
        if not s then
          print('Fail to execute '..name..' due to', r)
        end
      else
        print('Unknown function', name)
      end
    elseif flag == '-' then
      requestFunctionMap[name] = nil
    elseif flag == '+' or flag == '*' then
      -- Registering the new request using the specified Lua code
      local injected = 'local value, evalJs, callJs, context, webview = ...; '
      if flag == '*' then
        injected = 'local jsonValue, evalJs, callJs, context, webview, jsonLib = ...; local value = jsonLib.decode(jsonValue); '
      end
      local fn, err = load(injected..value)
      requestFunctionMap[name] = fn
      if fn then
        if verbose then
          print('Loaded '..name..' as', value)
        end
      else
        print('Error', err, 'while loading', value)
      end
    else
      print('Invalid flag', flag)
    end
  else
    print('Invalid request', request)
  end
end)

-- Runs the web view event loop
webviewLib.loop(webview)

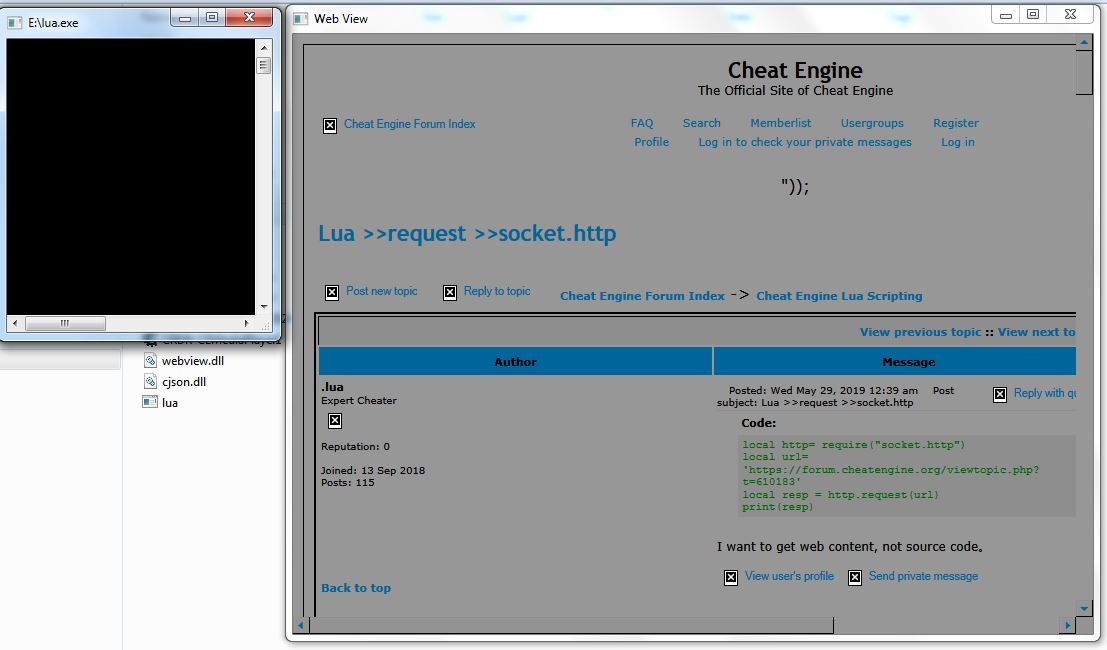

-- result as attached image

Problem:

Can not use in CE 7.1 : event webview.dll has placed on CE clibs32 or clibs64 folder (I am on windows 7 64bit)

Code:
local webviewLib = require('webview')   -- failed to load or not found

-- or maybe use: (?)

package.loadlib('E:\\ webview.dll','luaopen_webview')


Any solutions?



 Description:
 Filesize:  78.05 KB
 Viewed:  2058 Time(s)




_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
Back to top
View user's profile Send private message
Dark Byte
Site Admin
Reputation: 472

Joined: 09 May 2003
Posts: 25874
Location: The netherlands

PostPosted: Sat Apr 25, 2020 10:07 am    Post subject: Reply with quote

compile webview with the help of ce lua's .lib files
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping
Back to top
View user's profile Send private message MSN Messenger
Corroder
Grandmaster Cheater Supreme
Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

PostPosted: Sun Apr 26, 2020 1:55 am    Post subject: Reply with quote

Thanks, DB for the solution. In case when trying compile webview source + CE lua53-64.lib using MSVC Compiler, I got many warnings and errors (maybe because I don't know how to do that properly), then I made an HTML renderer to an image app using C#, it works just fine.

Considering this topic: https://forum.cheatengine.org/viewtopic.php?p=5760315#5760315
Also able to use third-party app names IECapt for an easier solution.

Regards

_________________
Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
Back to top
View user's profile Send private message
