How to change picture with click of the button?

Cheat Engine Forum Index -> Cheat Engine Lua Scripting

View previous topic :: View next topic

Author

Message

Razi
Expert Cheater

Reputation: 1

Joined: 17 Jan 2018
Posts: 205

Posted: Thu Mar 14, 2019 2:58 am Post subject: How to change picture with click of the button?

How to change picture with click of the button?
3 pictures added with Table menu add an image file. Table created:

Code:

local picturestbl = { [1] = 'pict-1.gif', [2] = 'pict-2.gif', [3] = 'pict-3.gif' }

How to change pictures with 2 buttons in the CEImage1? If CEButton1 is clicked, then show pict-1.gif, if CEButton2 is clicked, then show pict-2.gif.
How to change pictures with 2 buttons in the UDF1 form with same way?
Can you make a .CT file for example?

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Thu Mar 14, 2019 4:13 am Post subject:

Code:

picturestbl = {
{p_img='pict-1.gif'},
{p_img='pict-2.gif'},
{p_img='pict-3.gif'}
}

UDF1.CEImage1.Visible = false

function picShow(sender)
if sender.Name == 'CEButton1' then
index = picturestbl[1]
UDF1.CEImage1.Visible = true
UDF1.CEImage1.Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif sender.Name == 'CEButton2' then
index = picturestbl[2]
UDF1.CEImage1.Visible = true
UDF1.CEImage1.Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif sender.Name == nil then
UDF1.CEImage1.Visible = false
end
end

UDF1.Show()
UDF1.CEButton1.onClick = picShow
UDF1.CEButton2.onClick = picShow

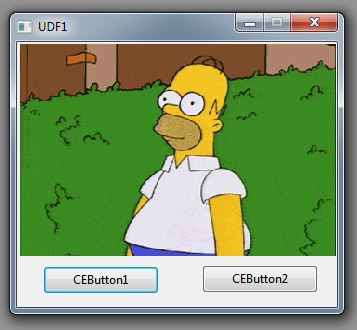

The form made as shown on attaching pictures :

Btw, how if you have 100 pictures ?. should we make 100 buttons on the form? Very Happy


Description:

Form and CEButton1 on click

Filesize:

27.83 KB

Viewed:

5944 Time(s)

_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL

AylinCE
Grandmaster Cheater Supreme

Reputation: 34

Joined: 16 Feb 2017
Posts: 1432

Posted: Thu Mar 14, 2019 4:22 am Post subject: Re: How to change picture with click of the button?

Razi wrote:

How to change picture with click of the button?
3 pictures added with Table menu add an image file. Table created:

Code:

local picturestbl = { [1] = 'pict-1.gif', [2] = 'pict-2.gif', [3] = 'pict-3.gif' }

CE still does not support .gif.
You should create a gif with the help of the following code.
How to:
1) .CT "Add File" (create gifi: split into .png and upload to CT)
2) Set picture names: (Example: There are 9 pictures ..
Names: frame_001 .. frame_002 .. frame_003 .. frame_009 etc. )
3) Process the image numbers in the code: For gif1: "for i = 1,9 do"
Example for gif2: "for i = 10,18 do"
4) Give ButtonClick approvals: "gif1.image.stretch = false
gif1.image.Visible = false "or gif2 etc.

Code:

function createGIF(form, width, top, frames, doCenter)
---- ImageGIF Code Creator: FreeER and Corroder Thanks to +1 Rep..
-------------------------------------------------------
local pics={}
for _,frame in pairs(frames) do
local pic
if frame.ClassName == 'TMemoryStream' then
pic = createPicture()
pic.loadFromStream(frame)
else -- first try to load as a tableFile then as a filepath
local file = findTableFile(frame)
if file then
pic = createPicture()
pic.loadFromStream(file.Stream)
else
-- loadFromFile doesn't report success, nor does the Picture object
-- have a way to check, so do it ourselves first.
local function file_exists(name)
local f=io.open(name,"r")
if f~=nil then io.close(f) return true else return false end
end
if file_exists(frame) then
pic = createPicture()
pic.loadFromFile(frame)
end
end
end
-- if successfully loaded then add it
if pic then pics[#pics+1] = pic end
end

-- if we failed to load any frames
if #frames ~= 0 and #pics == 0 then return nil end

pics.currentPicture = 1

local mImage = createImage(form)
mImage.width = width
mImage.top = top
mImage.height = form.height
if doCenter then
mImage.left = (form.width-mImage.width) / 2
end
--mImage.stretch = true

local gif = {}
gif.image = mImage
gif.pics = pics
gif.next = function()
pics.currentPicture = (pics.currentPicture % #pics) + 1
mImage.Picture = pics[pics.currentPicture]
end

gif.timer = createTimer(mImage)
gif.timer.Interval = 3500 / #gif.pics -- frames per second
gif.timer.OnTimer = function(sender) gif.next() end
return gif
end

local frameNameFormat = 'frame_%03d.png'
-- create a gif with frames 1-14, dual flames
local t = {}
for i=1,14 do
t[i] = findTableFile(frameNameFormat:format(i)).Stream
end
gif1 = createGIF(UDF1, UDF1.width, 200, t, true)

-- create a gif with frames 21-38, rainbowy explosion
local t = {}
for i=15,29 do
t[#t+1] = findTableFile(frameNameFormat:format(i)).Stream
end
gif2 = createGIF(UDF2, 30, 30, t, true)

--------------------------------------------------

function CEButton2Click(sender)
gif1.image.stretch = false
gif2.image.stretch = false
gif1.image.Visible = false
gif2.image.Visible = false
end
function CEButton1Click(sender)
gif1.image.stretch = true
gif1.image.Visible = true
end

_________________

Hi Hitler Different Trainer forms for you!
https://forum.cheatengine.org/viewtopic.php?t=619279
Enthusiastic people: Always one step ahead
Do not underestimate me Master: You were a beginner in the past

Razi
Expert Cheater

Reputation: 1

Joined: 17 Jan 2018
Posts: 205

Posted: Thu Mar 14, 2019 12:18 pm Post subject:

@Corroder: Thank you

Is it possible to improve the following code?

Code:

picturestbl = {
{p_img='pict-1.gif'},
{p_img='pict-2.gif'},
{p_img='pict-3.gif'},
{p_img='pict-4.gif'},
{p_img='pict-5.gif'},
{p_img='pict-6.gif'},
{p_img='pict-7.gif'}
}

UDF1.CEImage1.Visible = false
UDF1.CEImage2.Visible = false
UDF1.CEImage3.Visible = false
UDF1.CEImage4.Visible = false
UDF1.CEImage5.Visible = false
UDF1.CEImage6.Visible = false
UDF1.CEImage7.Visible = false
UDF1.CEImage8.Visible = false
UDF1.CEImage9.Visible = false
UDF1.CEImage10.Visible = false
UDF1.CEImage11.Visible = false
UDF1.CEImage12.Visible = false
UDF1.CEImage13.Visible = false
UDF1.CEImage14.Visible = false
UDF1.CEImage15.Visible = false
UDF1.CEImage16.Visible = false

function picShow()
for x = 1, 16 do
local offset1 = (x-1) % 8
local offset11 = 0x84*((x-1) // 8)
local equippedwpn = readBytes(0x009E8640+offset11)
local offset2 = 0x2C*equippedwpn
local valuemat = readBytes(0x009BF7C0+offset1+offset2)

if valuemat == 1 then
index = picturestbl[1]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 2 then
index = picturestbl[2]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 3 then
index = picturestbl[3]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 5 then
index = picturestbl[5]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 6 then
index = picturestbl[6]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 7 then
index = picturestbl[7]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 0 then
UDF1['CEImage'..x].Visible = false
elseif valuemat == nil then
UDF1['CEImage'..x].Visible = false
end
end
end

UDF1.Show()
UDF1.CEButton1.onClick = picShow

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Thu Mar 14, 2019 7:40 pm Post subject:

Code:

Is it possible to improve the following code?

1. You have 7 pictures on the table but make 16 CEImage objects. Are you sure need 16 images on your form?

2. This code

Code:

Are you sure 'valuemat' value contains the number 1 to 7 ?. Not numbers with a decimal point or string or others except an integer?

If yes, then perhaps change to something like this :

Code:

for x = 1, 16 do
local offset1 = (x-1) % 8
local offset11 = 0x84*((x-1) // 8)
local equippedwpn = readBytes(0x009E8640+offset11)
local offset2 = 0x2C*equippedwpn
local valuemat = readBytes(0x009BF7C0+offset1+offset2)
index = picturestbl[valuemat]
UDF1.CEImage1.Visible = true
UDF1.CEImage1.Picture.loadFromStream(findTableFile(index.p_img).Stream)
..
..
end

Anyhow, I still doubt if need a looping by use for...end.
_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL

Razi
Expert Cheater

Reputation: 1

Joined: 17 Jan 2018
Posts: 205

Posted: Fri Mar 15, 2019 3:41 am Post subject:

Corroder wrote:

1. You have 7 pictures on the table but make 16 CEImage objects. Are you sure need 16 images on your form?
2.Are you sure 'valuemat' value contains the number 1 to 7 ?. Not numbers with a decimal point or string or others except an integer?
Anyhow, I still doubt if need a looping by use for...end.

1. The form should have 144 CEImage objects.
2. The 'valuemat' value always contains a number from 0 to 7, if the address contains a value 1-7, then this is a picture, if the address contains a value of 0, then there is no picture.
The following code works correctly. Thanks for the help.

Code:

picturestbl = {
{p_img='pict-1.gif'},
{p_img='pict-2.gif'},
{p_img='pict-3.gif'},
{p_img='pict-4.gif'},
{p_img='pict-5.gif'},
{p_img='pict-6.gif'},
{p_img='pict-7.gif'}
}

for x = 1, 16 do
UDF1['CEImage'..x].Visible = false
end

function picShow()
for x = 1, 16 do
UDF1['CEImage'..x].Visible = false
local offset1 = (x-1) % 8
local offset11 = 0x84*((x-1) // 8)
local equippedwpn = readBytes(0x009E8640+offset11)
local offset2 = 0x2C*equippedwpn
local valuemat = readBytes(0x009BF7C0+offset1+offset2)

if valuemat > 0 then
index = picturestbl[valuemat]
UDF1['CEImage'..x].Visible = true
UDF1['CEImage'..x].Picture.loadFromStream(findTableFile(index.p_img).Stream)
elseif valuemat == 0 then
UDF1['CEImage'..x].Visible = false
elseif valuemat == nil then
UDF1['CEImage'..x].Visible = false
end
end
end

UDF1.Show()
UDF1.CEButton1.onClick = picShow

Can we put or draw two pictures in one CEImage1 and place them in different places? (Something like a combination of pictures in one CEImage1)

Corroder
Grandmaster Cheater Supreme

Reputation: 75

Joined: 10 Apr 2015
Posts: 1668

Posted: Sat Mar 16, 2019 1:50 am Post subject:

Quote:

Can we put or draw two pictures in one CEImage1 and place them in different places? (Something like a combination of pictures in one CEImage1)

Maybe, need to know how to fill canvas drawn by a stream image file.
Something like 'Canvas.Brush / Canvas.fillRect / etc'
_________________

Stealing Code From Stolen Code...
And Admit It.. Hmmm....Typically LOL
