Assembly: puzzled about a jump instruction


Post new topic   Reply to topic    Cheat Engine Forum Index -> General programming
View previous topic :: View next topic
Author Message
Csimbi
I post too much
Reputation: 97

Joined: 14 Jul 2007
Posts: 3330
PostPosted: Sun Sep 22, 2013 3:03 pm    Post subject: Assembly: puzzled about a jump instruction Reply with quote
Hi all,
I have encountered an instruction which leaves me puzzled because it does not seem to be doing what I am expecting it to be doing.

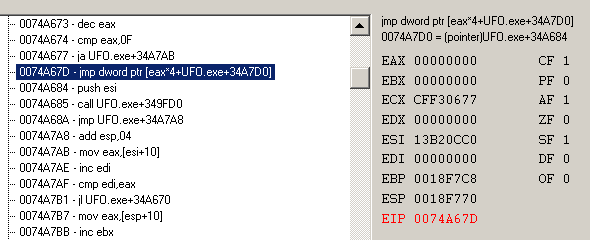

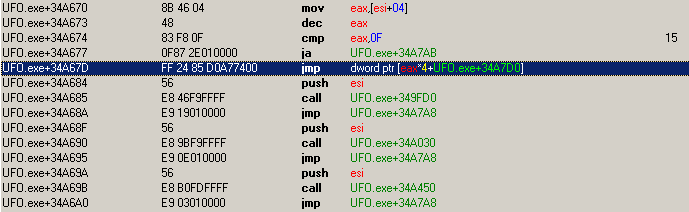

I attached two screenshots.
You'll see the following instruction on the first screenshot:
Code:
jmp dword ptr [eax*4+UFO.exe+34A7D0]


By all rights, when EAX==0, it should jump to UFO.exe+0x34A7D0 (=0x74A7D0). However, it simply jumps to the next instruction, as seen on the second screenshot (which shows the trace).

Could someone explain to me why does this happen?

Thanks!

 Description:
 Filesize:  7.21 KB
 Viewed:  3705 Time(s)

 Description:
 Filesize:  8.33 KB
 Viewed:  3705 Time(s)

Back to top
View user's profile Send private message
Dark Byte
Site Admin
Reputation: 471

Joined: 09 May 2003
Posts: 25824
Location: The netherlands
PostPosted: Sun Sep 22, 2013 3:25 pm    Post subject: Reply with quote
It will jump to the location the 4 byte value at ufo.exe+34a7d0 represents
In this case, that address contains the value ufo.exe+34a684
_________________
Do not ask me about online cheats. I don't know any and wont help finding them.

Like my help? Join me on Patreon so i can keep helping
Back to top
View user's profile Send private message MSN Messenger
Csimbi
I post too much
Reputation: 97

Joined: 14 Jul 2007
Posts: 3330
PostPosted: Sun Sep 22, 2013 8:13 pm    Post subject: Reply with quote
Meh, too easy Wink
Thanks!
